ARC1S/BT - 13.56 MHz DESFire® EV3 + Bluetooth® mullion reader

ARC1S/BT - 13.56 MHz DESFire® EV3 + Bluetooth® mullion reader

Compatible with all access control systems, Architect® One Blue is an extremely compact reader for RFID cards and Bluetooth® & NFC smartphones for mounting on narrow surfaces.

The most awarded access control reader around the worldbandeau logo Trophees STid 2017 V2

Logo of Architect One for the ARC1S/BT

The concentrate of our most ingenious ideas

  • Picture of a black ARC1S/BT of STid Industry from the front
  • Picture of a black ARC1S/BT of STid Industry from the front version 2
  • Picture of a black ARC1S/BT of STid Industry from the right side
  • Picture of a black ARC1S/BT of STid Industry from complete right side
  • Picture of a black ARC1S/BT of STid Industry from the back
  • Picture of a white ARC1S/BT of STid Industry from the front
  • Picture of a black ARC1S/BT of STid Industry from the complete left side

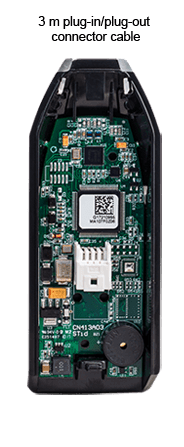

Sleek design for easy installation

arc oneBT versions 3m US





The mullion reader is designed to be installed in spaces requiring a small footprint: door frames, narrow electrical junction boxes, sliding doors, fast access control corridors, elevators.

Its optimized design ensures perfect integration, whatever the installation environment and without additional spacers (even on metal). The pluggable cable and the mounting base make it very easy to install.

Download the installation note



Picture of a woman using the ARC1S/BT by STid Industry

A multi-technology RFID & Bluetooth® reader

The reader allows secure identification of users thanks to its multiple identification technologies.

ARC1 multi techno BT US

Access control with the smartphone

Discover the 5 modes of identification for a unique user experience!

Virtual cards promote acceptance of and compliance with the Security Policy of businessesindustries and governments.
STid Mobile ID® is so user-friendly that it makes identification instinctive.

Choose your favorite identification mode and make your access options both secure and much more intuitive!

mode vocal

Card
Mode


by placing your smartphone in front of the reader.



Picto mode tap tap

Tap Tap
Mode


by tapping your smartphone twice in your pocket for near or remote opening.



Picto mode badge

Voice
Control


by using the voice command on your iPhone (iOS).

Picto mode remote

Remote Mode


by using your smartphone as a remote control.



Picto mode mains libre

Hands-free
Mode


by simply passing in front of the reader.



See identification modes Play

Welcome to high security

Logo of Anssi for the high security of the ARC1S/BT

STid is the first RFID manufacturer to have received First Level Security Certification (CSPN).
It’s a recognition of our unique know-how, the technological and security expertise that are implemented
in your access architecture, whether new or existing.

The reader supports the latest contactless technologies with the newest data security devices:

  • Secure Messaging EV2: transaction security that protects against interleaving and replay attacks.
  • Proximity Check: protection against relay attacks.



It integrates recognized and approved security mechanisms such as public algorithms and an EAL5+ certified crypto processor to protect your data stored in the reader.

End-to-end security control

With top-level security certification (CSPN) from the French National Agency for the Security of Information Systems (ANSSI), STid secures and protects your data.

In addition to an integrated cross-level quality process within the company, we have implemented a constant auditing procedure with a number of external security audits (PHONESEC).

Download the audit certificate



multifactors iconSecuring smartphone Apps & users

Encryption and obfuscation methods

 Anti-reverse engineering development methods

Multi-factor authentication

Security audit

bouclier icon

ANSSI compliant secure communication

Data authenticity and confidentiality ensured throughout the communication chain

Use of cryptographic algorithms comply with international government standards

database key icon

Secure sensitive data storage

Secure storage using encryption and obfuscation methods

EAL5+ storage in the reader



Picture of the secure smartphone thanks to the ARC1S/Bt by STid Industry

Logo secard for the ARC1S/BT

The software tool for full control of your security

The SECard software lets users, installers and integrators easily:

Picture of the SACARD software for the ARC1S/BT by STid Industry

  • securely program user RFID and virtual cards,
  • create master physical or virtual badges for programming readers,
  • manage keys and security configurations.



See the flyer

Benefits

  • 100% local sandboxed programming
  • Autonomous management for securely programming RFID and Bluetooth® user cards
  • Configuration and reconfiguration of readers
  • Protection and confidentiality of user cards and the master card
  • Plug & Play tool
  • Fully compatible with AGENT, CIMS and STITCH cards
  • Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

logo sia osdp US

Readers are compatible with the SIA Open Supervised Device Protocol - OSDP™ V1 & V2.

logo sscp US

Readers are compatible with the latest generation of open protocol SSCP (STid Secure Common Protocol). This protocol recommended by ANSSI uses data encryption (AES) and two-way “reader-controller” authentication to ensure security before any communication is allowed between the reader and the management system.

Best market self-protection

The innovative tamper protection system protects sensitive data and gives the possibility to delete the authentication keys (patented solution). Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

 ARC1S/BT shield for security



Standing the test of the time

Design to push the boundaries, the Architect® One Blue reader design has been developed to withstand harsh environments, to operate outside (IP65 level) and to offer a high impact resistance (IK10 certified).

Download the resistance reportVideo of a crash test

Picture show the resistance of the ARC1S/BT by STid Industry

Let your imagination flow

A signature reflects personal style choices. The design of Architect® One Blue readers is immediately recognizable, with a dynamic and elegant style, featuring clean, pure lines. STid offers a range of customization options to tailor your reader to your corporate identity and integrate it fully into its installation environment.

A spectacular experience

Picture for the spectacular experience of the ARC1S/BT by STid Industry

"Skin effect" new customization technology

  • Picture of an ARC1S/BT by STid Industry with a red marble skin
  • Picture of an ARC1S/BT by STid Industry with a brown wood skin
  • Picture of an ARC1S/BT by STid Industry with a dark grey wood skin
  • Picture of an ARC1S/BT by STid Industry with a light grey wood skin
  • Picture of an ARC1S/BT by STid Industry with a white with black dots skin
  • Picture of an ARC1S/BT by STid Industry with a military skin
  • Picture of an ARC1S/BT by STid Industry with a USA flag skin
  • Picture of an ARC1S/BT by STid Industry with the black and white joker skin
  • Picture of an ARC1S/BT by STid Industry with the reptile skin
  • Picture of an ARC1S/BT by STid Industry with the skull skin
  • Picture of an ARC1S/BT by STid Industry with the pollock skin
  • Picture of an ARC1S/BT by STid Industry with light military skin
  • Picture of an ARC1S/BT by STid Industry with the baroque skin
  • Picture of an ARC1S/BT by STid Industry with green flame skin

  • Picture of an ARC1S/BT by STid Industry with the graffiti skin
  • Picture of an ARC1S/BT by STid Industry with the water skin

Download the "Skin effect" catalog

Data sheet

  • Frequency
    Frequency: 13.56 MHz + Bluetooth® (Low Energy)
  • Standards
    Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL, RoHS & UL294 Indoor & Outdoor
  • Chip
    Chip: STid Mobile ID® (Bluetooth® and NFC HCE virtual cards), Orange Pack ID + MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® (S/X) & Plus® EV1, DESFire® 256, EV1, EV2 & EV3, NFC HCE, PicoPass® (CSN only), iCLASS™ (CSN only)*
  • Functions
    Functions: Read only CSN, pre-configured (Easyline - PC2) and secure (file, sector) / Protocol-driven (read-write)
  • Interfaces
    Interfaces: TTL Clock&Data (ISO2) or Wiegand output (encrypted option - S31) / RS485 output (encrypted option - S33) with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) - Compatible with EasySecure interface (encrypted communication)
  • Reading distances
    Reading distances: 0 - 6 cm / 0 - 2.36’’ with RFID / 0 - 20 m / 0 – 65.6 ft with Bluetooth®
  • Power supply
    Power supply: 9 - 15 VDC / Consumption: 150 mA/12 VDC max
  • Material
    Material: ABS-PC-UL-V0 (black) / ASA-PC-UL-V0 UV (white)
  • Color
    Color: black or white - Other possibilities for cover customization
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 111.5 x 42.2 x 22 mm / 4.39’’ x 1.66’’ x 0.86’’
  • Operating temperatures
    Operating temperatures: - 30°C to + 70°C / - 22°F to + 158°F
  • Protection
    Protection: reinforced vandal proof structure IK10 / Accelerometer-based tamper detection system
  • Resistance
    Resistance: IP65 level (excluding connectors) - Weather-resistant with waterproof electronics (certification CEI NF EN 61086) / Humidity: 0 - 95%

*Our readers only read the UID/Chip Serial Number. They do not read secure HID Global’s iCLASS™ cryptographic protections.



Picture of the ARC1S/BT with its dimensions

           CE FCC UL Logos grey 250px

Part numbers



Picto R Read only

Secure - TTL Wiegand / Data Clock:
ARC1S-R31-B/BT1-xx/y

Easyline pre-configured offer - Wiegand:
ARC1S-Rx1-B/PC2-3x/1

Secure / Secure Plus - TTL Wiegand / Data Clock:
ARC1S-S31-B/BT1-xx/y

Secure - RS485:
ARC1S-R33-B/BT1-7AB/y

Secure / EasySecure decoder - RS485:
ARC1S-R33-B/BT1-7AA/y

Secure / Secure Plus - RS485:
ARC1S-S33-B/BT1-7AB/y

Secure / Secure Plus / EasySecure decoder - RS485:
ARC1S-S33-B/BT1-7AA/y

picto RW Controlled by protocol

Secure - SSCP RS485:
ARC1S-W33-B/BT1-7AA/y

Secure - SSCP2 RS485:
ARC1S-W33-B/BT1-7AD/y

Secure - OSDPTM RS485:
ARC1S-W33-B/BT1-7OS/y

y: color casing (1: black - 2: white)
